A premium Australian-made 3″ turbo-back exhaust system for Toyota Prado 120 3.0L D4D 1KD-FTV (10/2006–2009), delivering better exhaust flow, stronger turbo response and a deeper, more purposeful exhaust note.
The 3″ Outback Exhaust System for Toyota Prado 120 3.0L D4D 1KD-FTV (10/2006–2009) Turbo Back is a durable, Australian-made upgrade designed to increase exhaust flow, sharpen turbo response and produce a deeper note. Built from 409 stainless steel with mandrel bends, this system is engineered to handle touring, towing and everyday driving conditions. It replaces the entire factory exhaust from the turbo outlet to the tail pipe, offering a direct bolt-on fitment that uses the original mounting points.
Installation is straightforward and normally does not require a hoist, making it suitable for workshops and confident home installers. Sunshine Coast Diesel Tuning supplies this system and offers professional fitting services for customers wanting a complete upgrade solution.
Key Features
Australian-made 3″ turbo-back exhaust for Prado 120 1KD-FTV.
409 stainless steel with full mandrel bends for improved flow.
Direct bolt-on design reusing factory mounting points.
Enhanced turbo response and a deeper, refined exhaust note.
Includes engine pipe, main section and tail pipe.
Supplied with fasteners and gaskets (turbo gasket reused).
Backed by a 5-year Outback Exhausts warranty.
Specifications
Vehicle: Toyota Prado 120 Wagon (1KDJ120R)
Engine: 3.0L D4D 1KD-FTV
Year Range: 10/2006 – 2009
Pipe Diameter:</strong 3″ (76 mm)
Material: 409 stainless steel
System Type: Turbo-back
SKU: OE4649-S
What’s in the Box

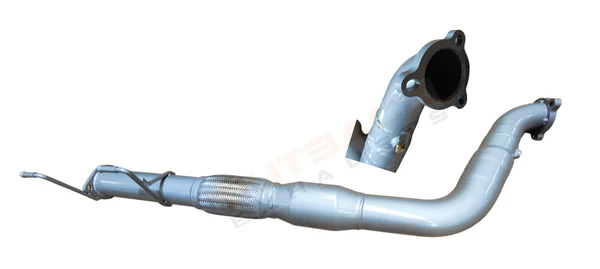

3″ engine pipe
Main intermediate section

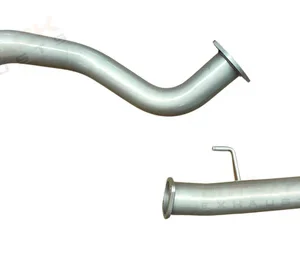

Tail pipe
Fitting hardware and brackets
Compatibility
This system is designed for Toyota Prado 120 1KDJ120R with the 3.0L D4D 1KD-FTV engine, built between 10/2006 and 2009. Always check accessories such as long-range tanks or tow bars for clearance.
Delivery & Lead Times
Outback Exhausts ships Australia-wide and internationally. Some systems ship in two cartons due to weight limits. Business addresses are preferred for freight. Delivery times vary by region.
Professional Fitting Service on the Sunshine Coast
Sunshine Coast Diesel Tuning offers expert installation of this Prado 120 3″ system, ensuring correct alignment, clearances and sealing. Book installation or learn more at scdieseltuning.com.au.
