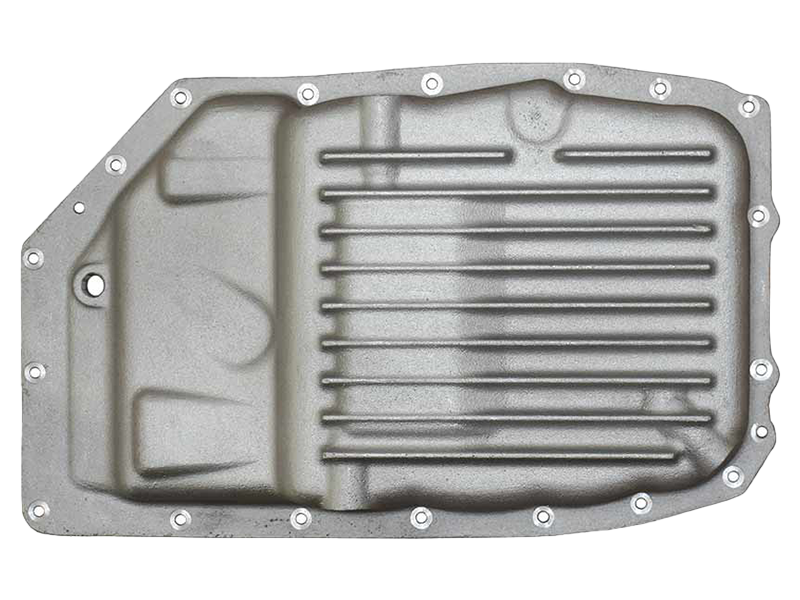

GM 6L90, 6L90E Stock Capacity Transmission Pan

Description

GM 6L90, 6L90E Stock Capacity Transmission Pan Overview

The GM 6L90, 6L90E Stock Capacity Transmission Pan is a high-quality cast aluminium pan designed to suit GM’s 6L90 and 6L90E automatic transmissions. Built for reliability, this pan provides stock fluid capacity while delivering improved cooling and durability over standard pressed steel pans. Ideal for heavy-duty applications, towing, and performance driving, it ensures longer transmission life and reduced maintenance issues.

Key Features of the GM 6L90/6L90E Transmission Pan

• Precision cast aluminium construction for strength and heat dissipation
• Stock capacity design – no modifications required
• Direct bolt-on replacement for GM 6L90 and 6L90E transmissions
• Durable finish designed to withstand harsh environments
• Improves rigidity and reduces transmission case flex

Specifications

• Part Number: PAN-11088-AC
• Material: Cast Aluminium
• Capacity: Stock capacity (OEM specification)
• Transmission Fitment: GM 6L90 / 6L90E
• Finish: Natural aluminium
• Mounting: Factory bolt pattern

What’s in the Box – GM 6L90/6L90E Pan

• 1 x GM 6L90/6L90E Cast Aluminium Transmission Pan
• Mounting hardware (if supplied by manufacturer)
• Installation instructions (PDF available below)

Vehicle Compatibility with 6L90 & 6L90E Gearboxes

This transmission pan is designed for:

• GM 6L90 automatic transmissions
• GM 6L90E automatic transmissions
• Applications in Holden Commodore, Chevrolet Silverado, GMC Sierra, and other GM platforms equipped with 6L90/6L90E gearboxes

PDF Fitting Instructions for GM 6L90, 6L90E Transmission Pan

Download fitting instructions (PDF)

Delivery & Lead Times

Please note: This product is available on backorder and may take approximately 2–3 weeks for delivery.

Professional Fitting Service on the Sunshine Coast

For customers based on the Sunshine Coast, Sunshine Coast Diesel Tuning offers professional fitting services. Our expert technicians can install your GM 6L90, 6L90E Stock Capacity Transmission Pan and ensure everything is set up for maximum performance and reliability. Contact us today to arrange a fitting appointment.
