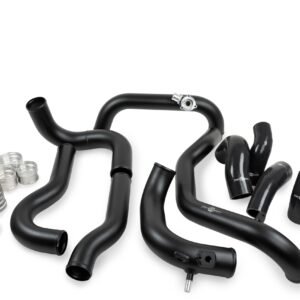

Next Gen Ranger Raptor Intercooler Piping Kit (Compatible With Factory Intercooler, stage 1 Process West or any other aftermarket factory replacement intercooler)

Description

Overview

The Next Gen Ranger Raptor Intercooler Piping Kit from Process West replaces the factory plastic charge pipes with mandrel-bent aluminium tubing. It is a performance upgrade that delivers stronger boost integrity, smoother airflow, and improved response under load. Available in Black or Red powder-coated finishes, it looks as good as it performs.

This kit fits perfectly with the factory intercooler, the Process West Stage 1 system, or most factory-replacement aftermarket intercoolers. Designed for direct bolt-on installation, no cutting or fabrication is required.

Key Features

• Choice of Black or Red powder-coated finish
• 2.5-inch mandrel-bent aluminium construction for superior flow
• Direct bolt-on fitment using factory mounts and routing
• Includes high-temperature 5-ply silicone joiners and clamps
• Compatible with factory or most OEM-style aftermarket intercoolers
• Improves reliability and reduces boost loss under high pressure
• Australian-engineered and tested by Process West

Specifications

The Process West piping kit uses 2.5-inch (63.5 mm) mandrel-bent aluminium for consistent internal diameter and smooth airflow. It includes premium silicone couplers, stainless-steel T-bolt clamps, and is available in both Black and Red finishes to match your engine bay style.

What’s in the Box

• Full hot-side and cold-side aluminium piping set
• Silicone joiners and clamps
• Mounting hardware and brackets
• Fitting instructions (see PDF below)

Compatibility

Designed for the Next Gen Ford Ranger Raptor (2022 +) V6 Bi-Turbo. It suits factory intercoolers, the Process West Stage 1 Intercooler, or other factory-style aftermarket units with matching inlet and outlet positions.

Colour Options

Select from two durable powder-coated finishes:

• Black – a subtle, OEM-style finish for a clean look
• Red – a bold, performance-inspired appearance

Choose your preferred colour option when ordering.

Delivery & Lead Times

Process West piping kits are typically in stock and dispatched within one to two business days. If unavailable, standard lead time is one to two weeks. For real-time stock or freight estimates, contact Sunshine Coast Diesel Tuning.

Professional Fitting Service on the Sunshine Coast

Sunshine Coast Diesel Tuning offers professional fitting for all Process West upgrades. Our experienced technicians ensure perfect alignment, boost-leak testing, and ECU-safe installation. Book your intercooler upgrade here and enjoy expert local service.
