Safari ARMAX Performance Clutch & ECU Package – Toyota LandCruiser 70 Series 1VD-FTV (2007–Current) Piezo Injectors

Description

Overview

The Safari ARMAX Performance Clutch + ECU Package is engineered specifically for the Toyota LandCruiser 70 Series 1VD-FTV (2007–Current, including 2024 facelift). Developed by Safari 4×4 Engineering, this complete system delivers outstanding torque management, seamless drivability, and unmatched reliability for high-torque, towing, and GVM-upgraded applications. The integrated ARMAX ECU is fully compatible with Denso Piezo Injectors, ensuring ultra-fast fuel delivery, improved combustion efficiency, and smoother engine response under load. Together, the ARMAX clutch and ECU combination provide up to 1100 Nm (250% over stock) torque capacity while maintaining OE-like pedal feel and consistent performance in all driving conditions.

Key Features

• +250% torque capacity (up to 1100 Nm) for enhanced towing and heavy-duty performance.

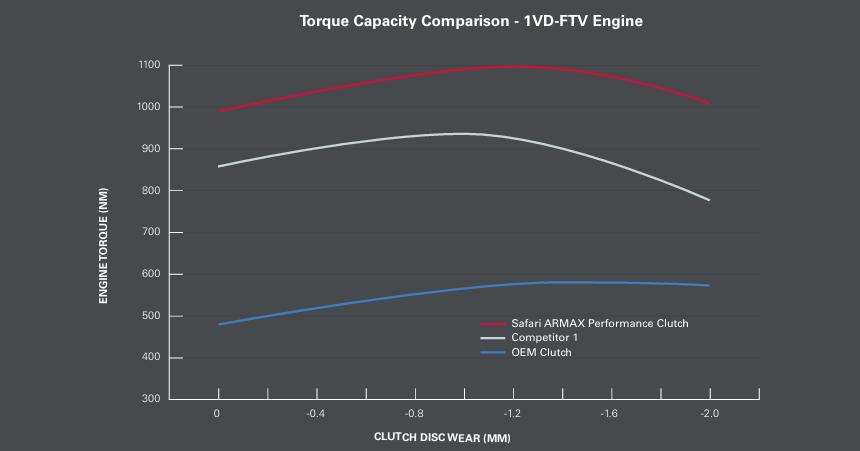

• Long-life design maintains torque capacity within 10% throughout clutch wear.
• Factory-like pedal feel with improved diaphragm lift control.
• Integrated Safari ARMAX slave cylinder for precision engagement.
• OE-grade drivability and durability for touring and off-road use.
• 12-month / 20,000 km product warranty.
• Safari ARMAX Engine & Drivetrain Warranty* when used with ARMAX ECU.

Specifications

• Part Number: SDVDJ70CHD
• Torque Capacity: 1100 Nm
• Increase over OEM: +250%
• Compatible Engine: 1VD-FTV Twin Turbo Diesel
• Vehicle Fitment: Toyota LandCruiser 70 Series, 2007–Current
• Pedal Feel: Standard OE characteristics

Piezo Injectors

The Safari ARMAX ECU is fully compatible with Piezoelectric Injector Technology featured in the Toyota LandCruiser 1VD-FTV engine. This advanced injector system offers superior fuel atomisation and precision control, providing faster response times and improved combustion efficiency. The ARMAX ECU calibration has been optimised to take full advantage of these injectors, enhancing throttle response, torque output, and overall drivability.

• Injector Type: Denso Piezoelectric Common Rail Injectors
• Injection Pressure: Up to 2000 bar
• Calibration: ECU-optimised for 1VD-FTV Piezo system
• Benefits: Improved fuel economy, reduced emissions, smoother idle
• Compatibility: Works seamlessly with ARMAX ECU mapping and clutch performance

What’s in the Box

• Safari ARMAX Performance Clutch assembly
• Safari ARMAX ECU (PN: SMPVDJ70M)
• Full mounting hardware and wiring looms
• EGT thermocouple assembly and switch controller
• Comprehensive installation guide and fitting kit

Compatibility

Suits all Toyota LandCruiser 70 Series models equipped with the 1VD-FTV V8 Turbo Diesel Engine from 2007 to current (including 2024 Euro 5 facelift). Compatible with OE brake booster, dual-diaphragm, and hydro-booster variants.

Delivery & Lead Times

All Safari ARMAX components are precision-engineered and assembled in Australia. Standard lead time is typically 3–5 business days depending on stock availability. For urgent requirements, please contact Sunshine Coast Diesel Tuning for same-day dispatch options.

Professional Fitting Service on the Sunshine Coast

Sunshine Coast Diesel Tuning offers professional fitting of all Safari ARMAX Performance Packages in-house. Our technicians ensure optimal ECU calibration, correct clutch installation, and full diagnostic verification for maximum performance and reliability. Book your fitting today at Sunshine Coast Diesel Tuning.
