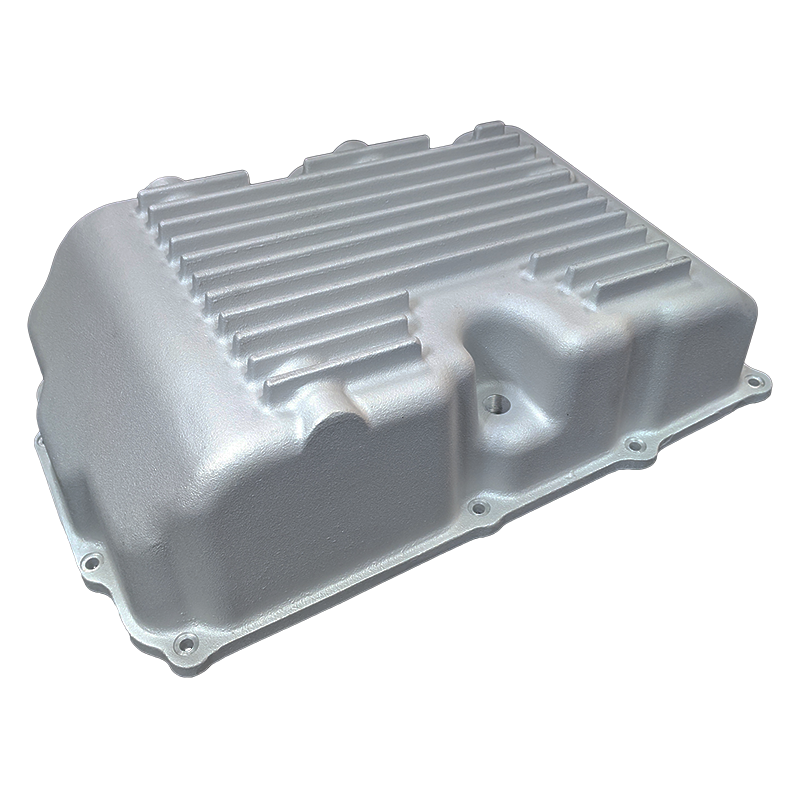

Toyota LandCruiser 200, Lexus LX570 and Tundra 6 Speed AB60 Deep Cast Transmission Pan

Overview

The AB60 Deep Cast Transmission Pan is a high-performance upgrade for Toyota LandCruiser 200, Lexus LX570, and Toyota Tundra models with AB60 6-speed transmissions. It increases oil capacity, improves cooling efficiency, and lowers fluid temperatures. These benefits extend fluid life, reduce internal wear, and enhance transmission reliability.

Key Features of the AB60 Deep Cast Transmission Pan

• Extra Fluid Capacity — Adds 3.25 L over the stock pan to boost cooling and extend fluid life by up to 25%.
• Aluminium Construction — Conducts heat better than steel, ensuring rapid temperature control.
• Finned Design — Enlarged surface area improves heat transfer and cooling performance.
• Magnetic Drain Plug — Simplifies fluid servicing while trapping metal debris to protect the drivetrain.
• Heavy-Duty Build — Reinforced casting resists transmission case flex and safeguards the valve body.
• Complete Installation Kit — Includes bolts, cork gasket, washers, and fill plug for straightforward installation.

Specifications

• Fluid Capacity Increase: +3.25 L over stock pan
• Bolt Count: 12 mounting bolts
• Included Items: Cast pan, cork gasket, mounting bolts & washers, fill plug, magnetic drain plug
• Drain Port: Left-side drain; right-side level-check/fill port in factory location
• Clearance Design: Clears frame cross members and preserves ground clearance
• Gasket: Cork design; do not reuse the stock gasket; silicone sealant optional

What’s in the Box

• Cast aluminium AB60 deep transmission pan
• Cork gasket tailored to AB60 applications
• 12 mounting bolts and washers
• Magnetic drain plug & fill plug

Compatibility

• Toyota LandCruiser 200 Series (Diesel & Petrol, 6-Speed Auto)
• Toyota LandCruiser 79 Series with AB60 6-Speed Auto conversions
• Toyota Tundra XK50 Series (6-Speed Auto)
• Lexus LX570 5.7L (2008–2015)

Note: Skid plates may require additional spacers for proper clearance.

PDF & Documentation

A dedicated fitting guide for the AB60 Deep Cast Transmission Pan is not currently online. Please contact our team for installation support or manufacturer documents.

Delivery & Lead Times

We usually stock the AB60 Deep Cast Transmission Pan and dispatch orders promptly. Shipping times depend on your location.

Professional Fitting Service on the Sunshine Coast

Sunshine Coast Diesel Tuning provides professional installation for the AB60 Deep Cast Transmission Pan. Our expert technicians guarantee precise fitment, protect your vehicle warranty, and maximise performance. Choosing our service ensures your upgrade delivers the best results.
