3” OUTBACK EXHAUST SYSTEM to suit ISUZU MU-X 3.0L 4JJ1 2012 – 2016 (TURBO BACK)

Description

Overview

The 3″ Outback Exhaust Isuzu MU-X 3.0L 4JJ1 turbo back system gives ISUZU MU-X owners stronger performance, tougher construction and a deeper exhaust note. It suits the 3.0L 4JJ1 turbo diesel MU-X wagon built between 2012 and 2016 and replaces the entire factory system from the turbo outlet to the tail. Outback Exhausts builds this system from mandrel-bent 409 stainless steel with high-quality flanges and brackets, and they engineer it as a direct bolt-on upgrade that uses factory mounting points. For complete technical details, visit the manufacturer’s product page at Outback Exhausts.

Key Features

• Purpose-built 3″ turbo back exhaust system for the Isuzu MU-X 3.0L 4JJ1 (2012–2016).
• Mandrel-bent tubing supports smooth, unrestricted gas flow for quicker engine response.
• 409 stainless steel construction provides excellent strength and corrosion protection.
• Direct bolt-on upgrade that uses existing factory mounting points and bracket locations.
• Includes dump pipe, engine pipe, centre section and tail pipe to deliver a complete system.
• Optional sound levels: resonator/small muffler (medium note) or straight pipe (loud note).
• Tail-pipe choices include a straight (factory-style) or droop tail pipe on selected variants.
• Reduced back pressure helps improve performance, tuning potential and towing capability.
• Covered by the manufacturer’s multi-year warranty (extractors may have separate terms).

Specifications

• Vehicle Make: Isuzu
• Model: MU-X (4WD wagon)
• Engine: 3.0L turbo diesel – 4JJ1
• Year Range: 2012–2016
• System Type: 3″ turbo back exhaust
• Pipe Diameter: 3″ (approx. 76 mm)
• Material: 409 stainless steel
• Configuration: Mandrel-bent, flanged sections with welded hangers
• Manufacturer SKU: OE1693 (or as listed in Outback Exhausts catalogue)

What’s in the Box

• 3″ dump pipe from turbo outlet

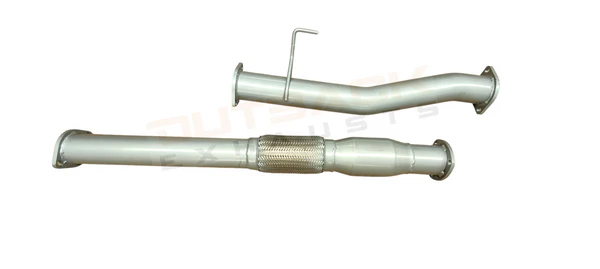

• Engine/front pipe section

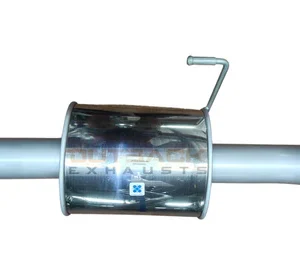

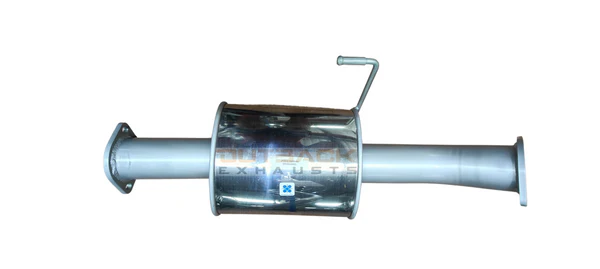

• Centre pipe with muffler or straight-through option (depending on selection)
• Rear tail pipe section
• Fitting kit with clamps, gaskets and required mounting hardware
• Basic installation notes (when included by the manufacturer)

Compatibility

The 3″ Outback Exhaust Isuzu MU-X 3.0L 4JJ1 system fits:

• Isuzu MU-X 3.0L 4JJ1 turbo diesel
• Body Style: 4WD wagon
• Build Years: 2012–2016

Confirm your engine code, build year and any current modifications before ordering. If you need help with fitment, contact us with your VIN and vehicle details so we can verify compatibility.

Delivery & Lead Times

Outback Exhaust supplies most systems to order, and lead times can shift with stock levels, production demands and freight locations. Some systems ship in multiple cartons due to their size and weight. You must supply a physical street or business address, as couriers cannot deliver to PO boxes. Remote-area surcharges may apply, and authority to leave may not suit some regional deliveries.

If you want an accurate ETA or a freight quote for your 3″ Outback Exhaust Isuzu MU-X 3.0L 4JJ1 system, contact our team with your postcode and preferred configuration.

Professional Fitting Service on the Sunshine Coast

If you are located on the Sunshine Coast, Sunshine Coast Diesel Tuning provides a professional installation service for this exhaust. Our technicians use factory mounting points, quality hardware and proven workshop processes to ensure a precise fit. We check for correct clearances and eliminate leaks or rattles so you can enjoy a reliable, high-performing exhaust upgrade ideal for touring, towing or daily driving.
