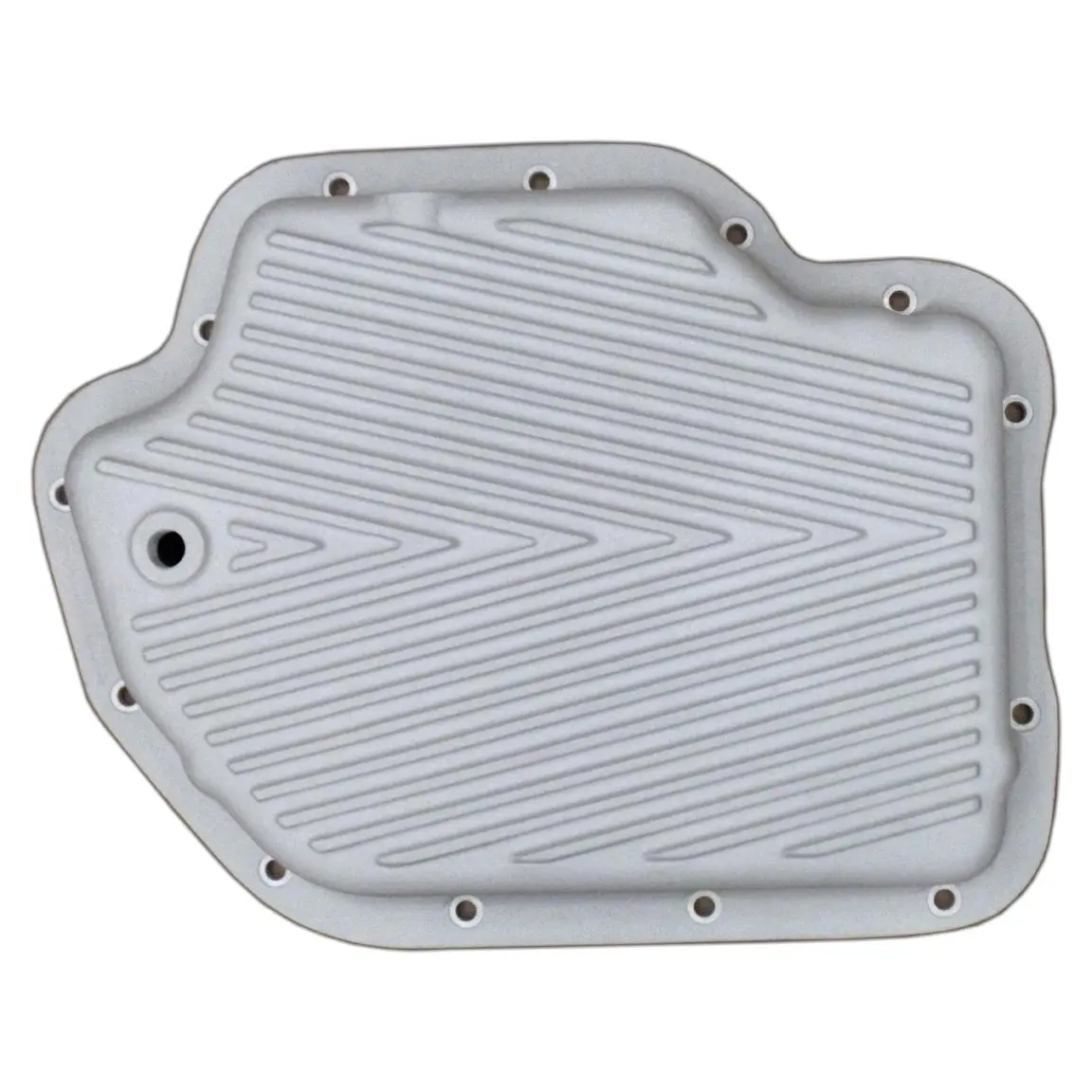

GM Turbo 400 Deep Transmission Pan

Description

Overview

The GM Turbo 400 Deep Transmission Pan delivers superior strength, reliability, and performance. Built from durable cast aluminium, this deep pan increases transmission fluid capacity, improves cooling efficiency, and extends the lifespan of your GM Turbo 400 automatic transmission. It suits heavy-duty applications, towing, and performance vehicles, while also adding rigidity to the transmission case and maintaining a sleek, functional design.

Unlike standard pressed-steel pans, this upgraded aluminium design dissipates heat more effectively, reducing the risk of transmission overheating under extreme conditions. The added oil capacity provides more consistent lubrication, especially during high-load driving or long-distance towing. For enthusiasts upgrading their driveline, or for those who simply want a more reliable setup for daily use, this pan offers both peace of mind and improved durability.

Turbo 400 Performance Pan Features

• High-quality cast aluminium construction provides durability and strength
• Deep design increases fluid capacity for better lubrication
• Improved heat dissipation helps stabilize transmission temperatures
• Reinforced structure strengthens the transmission case
• Drain plug allows easy servicing and maintenance
• Direct-fit design replaces the OEM transmission pan

Specifications – GM Turbo 400 Deep Transmission Pan

• Material: Cast Aluminium
• Compatible Transmission: GM Turbo 400 (TH400)
• Design: Deep pan style
• Part Number: PAN-9683-AC
• Finish: Machined aluminium

What’s in the Box

• 1 x TH400 Deep Performance Pan
• Drain plug assembly
• Mounting hardware (where supplied)
• Installation instructions

Compatibility with TH400 Transmission Applications

This aluminium pan suits vehicles running the GM Turbo 400 automatic transmission, widely used in performance, off-road, and heavy-duty builds. The TH400 transmission has earned a reputation for toughness, making it a favourite for drag racing, 4×4 setups, and classic muscle cars. By pairing this deep pan upgrade with the proven reliability of the Turbo 400, you gain a cooling and lubrication advantage that keeps your gearbox performing at its best. Whether you’re chasing quarter-mile times, climbing steep tracks, or hauling heavy loads, this pan offers the extra margin of safety that demanding applications require.

PDF Fitting Instructions

For detailed installation steps, view the manufacturer’s fitting guide: Download Fitting Instructions

Delivery & Lead Times

This product ships on backorder. Delivery usually takes 3–4 weeks.

Professional Fitting Service on the Sunshine Coast

At Sunshine Coast Diesel Tuning, our qualified technicians fit transmission pans correctly to maximise performance and reliability. Our workshop features the latest tools, and our team specializes in transmission upgrades, including GM Turbo 400 applications.
